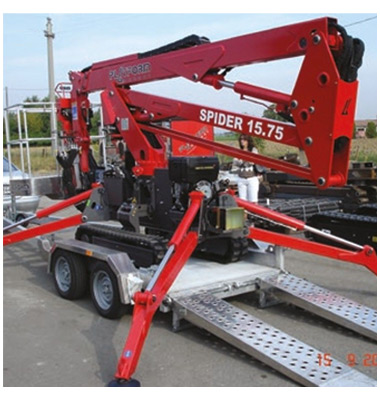

Platform Basket 15.75 15 meter tracked spider lift
The Spider 15.75 is a compact and versatile aerial platform, ideal for the maintenance of building façades and other hard-to-reach areas. Available with a Kubota diesel engine or a bi-energy electric option with 230 V motor and lithium batteries, it combines power, flexibility, and environmentally friendly operation.
Specification Sheet
Maximum Working Height
15M
Floor Height
13M
Maximum Side Outreach
7.4M (120KG)
Minimum Height
0.78M
Minimum Width
1.95M
Maximum Basket Capacity
200KG
Designed for ease of use and maintenance, the Spider 15.75 features precise proportional controls, quick-detach interchangeable cage, and a flying jib with no basket capacity restrictions. Outlets for air, water, and 230 V power are available in the basket, while metal covers protect the platform from falling objects. Its cranked outrigger design increases ground clearance, making it perfect for working safely and efficiently in challenging locations.
